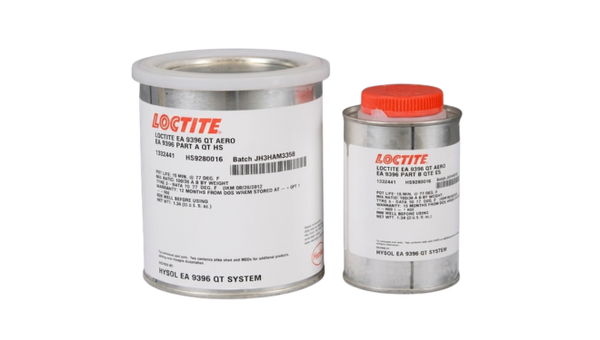

Loctite EA 9396
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Low Mixed Viscosity
- 120-Minute Pot Life
- MMM-A-132 Type 1 Class 3 Qualification
Product Description
LOCTITE® EA 9396 AERO is a two-part, low-viscosity epoxy paste adhesive that cures at room temperature and develops high bond strength across test temperatures from -67°F to 350°F (-55°C to 177°C). The mixed adhesive has a viscosity of 35 Poise (3.5 Pa·s) at 77°F (25°C), a 120-minute pot life for a 100 g mass, and a 100:30 Part A-to-Part B mix ratio by weight. Normal performance can be developed through a 3-to-5-day cure at 77°F (25°C), while a 1-hour cure at 150°F (66°C) provides an accelerated option. The product is qualified to MMM-A-132, Revision A, Type 1, Class 3.
Key features
- Low mixed viscosity: The mixed adhesive has a viscosity of 35 Poise (3.5 Pa·s) at 77°F (25°C).
- Room-temperature processing: Provides a 120-minute pot life for a 100 g mass and develops handling strength after 24 hours at 77°F (25°C).
- Temperature-dependent bond strength: ASTM D1002 lap-shear testing on phosphoric-acid-anodized 2024-T3 bare aluminum covers test temperatures from -67°F to 350°F (-55°C to 177°C).
TDS, SDS & Technical Documents
Technical Specifications
Physical Properties
Viscosity (Part A)Viscosity (Part A)
70,000 mPa.sViscosity (Part B)Viscosity (Part B)
90 mPa.sGeneral Properties
Mix RatioMix Ratio
100:30Additional Information
Technical properties
As-supplied / before-processing properties
Typical component, mixed-material, storage, and processing data for the two-part adhesive system.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color — Part A | Blue | — | Uncured component |
| Color — Part B | Purple | — | Uncured component |
| Color — Mixed | Green to dark purple | — | Immediately after mixing |
| Viscosity — Part A | 700 / 70 | Poise / Pa·s | 77°F/25°C; Brookfield HBT, spindle 4 at 10 rpm / 2.1 rad/s |
| Viscosity — Part B | 0.9 / 0.09 | Poise / Pa·s | 77°F/25°C; Brookfield HBT, spindle 1 at 100 rpm / 10.5 rad/s |
| Viscosity — Mixed | 35 / 3.5 | Poise / Pa·s | 77°F/25°C; Brookfield HBT, spindle 1 at 20 rpm / 2.1 rad/s |
| Density — Part A | 1.17 | g/mL | Uncured component |
| Density — Part B | 0.98 | g/mL | Uncured component |
| Density — Mixed | 1.14 | g/mL | Mixed adhesive |
| Mix ratio — Part A:Part B | 100:30 | By weight | Volume measurement is not recommended for structural applications unless ratio-control precautions are used |
| Pot life | 120 | minutes | 100 g mass at 77°F/25°C; ASTM D2471, water bath |
| Handling strength | 24 | hours | At 77°F/25°C; full bond strength has not yet developed |
| Normal cure | 3–5 | days | At 77°F/25°C |
| Accelerated cure | 1 | hour | At 150°F/66°C |
| Shelf life — Part A | 1 | year | Stored below 40°F/4°C or below 77°F/25°C |
| Shelf life — Part B | 1 | year | Stored below 40°F/4°C or below 77°F/25°C |
Technical properties
After-processing / final-state properties
Typical cured adhesive and bonded-joint properties. Values remain specific to the listed cure, specimen, substrate, test method, and test temperature.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Tensile lap shear strength | 3,300 / 22.8 | psi / MPa | ASTM D1002; tested at -67°F/-55°C after 5 days at 77°F/25°C |
| Tensile lap shear strength | 3,500 / 24.1 | psi / MPa | ASTM D1002; tested at 77°F/25°C after 5 days at 77°F/25°C |
| Tensile lap shear strength | 3,200 / 22.0 | psi / MPa | ASTM D1002; tested at 180°F/82°C after 5 days at 77°F/25°C |
| Tensile lap shear strength | 1,800 / 12.4 | psi / MPa | ASTM D1002; tested at 300°F/149°C after 5 days at 77°F/25°C |
| Tensile lap shear strength | 1,250 / 8.6 | psi / MPa | ASTM D1002; tested at 350°F/177°C after 5 days at 77°F/25°C |
| Tensile lap shear strength | 3,300 / 22.8 | psi / MPa | ASTM D1002; tested at -67°F/-55°C after 1 hour at 150°F/66°C |
| Tensile lap shear strength | 4,000 / 27.6 | psi / MPa | ASTM D1002; tested at 77°F/25°C after 1 hour at 150°F/66°C |
| Tensile lap shear strength | 3,300 / 22.8 | psi / MPa | ASTM D1002; tested at 180°F/82°C after 1 hour at 150°F/66°C |
| Tensile lap shear strength | 1,800 / 12.4 | psi / MPa | ASTM D1002; tested at 300°F/149°C after 1 hour at 150°F/66°C |
| Tensile lap shear strength | 1,200 / 8.3 | psi / MPa | ASTM D1002; tested at 350°F/177°C after 1 hour at 150°F/66°C |
| Tensile lap shear strength | 3,500 / 24.1 | psi / MPa | ASTM D1002; tested at -67°F/-55°C after 30 minutes at 180°F/82°C |
| Tensile lap shear strength | 4,000 / 27.6 | psi / MPa | ASTM D1002; tested at 77°F/25°C after 30 minutes at 180°F/82°C |
| Tensile lap shear strength | 3,300 / 22.8 | psi / MPa | ASTM D1002; tested at 180°F/82°C after 30 minutes at 180°F/82°C |
| Tensile lap shear strength | 1,900 / 13.1 | psi / MPa | ASTM D1002; tested at 300°F/149°C after 30 minutes at 180°F/82°C |
| Tensile lap shear strength | 1,200 / 8.3 | psi / MPa | ASTM D1002; tested at 350°F/177°C after 30 minutes at 180°F/82°C |
| Bell peel strength | 25 / 111 | lb/in / N/25 mm | ASTM D3167; tested at 77°F/25°C after 5 days at 77°F/25°C |
| Bell peel strength | 20 / 89 | lb/in / N/25 mm | ASTM D3167; tested at 180°F/82°C after 5 days at 77°F/25°C |
| Service temperature | Approximately 350 / 177 | °F / °C | Defined as the temperature at which the adhesive retains 1,000 psi/6.9 MPa by ASTM D1002 |
| Tensile strength | 8,000 / 35.2 | psi / MPa | ASTM D638; 0.125 in/3.18 mm casting; tested at 77°F/25°C; cure 5 days at 77°F/25°C plus 1 hour at 200°F/93°C |
| Tensile modulus | 400,000 / 2,750 | psi / MPa | ASTM D638; 0.125 in/3.18 mm casting; tested at 77°F/25°C; cure 5 days at 77°F/25°C plus 1 hour at 200°F/93°C |
| Elongation at break | 3.4 | % | ASTM D638; tested at 77°F/25°C; cure 5 days at 77°F/25°C plus 1 hour at 200°F/93°C |
| Dielectric constant | 4.17 | — | ASTM D150 at 0.1 kHz |
| Dielectric constant | 4.12 | — | ASTM D150 at 1.0 kHz |
| Dielectric constant | 3.97 | — | ASTM D150 at 10.0 kHz |
| Dissipation factor | 0.006 | — | ASTM D150 at 0.1 kHz |
| Dissipation factor | 0.017 | — | ASTM D150 at 1.0 kHz |
| Dissipation factor | 0.031 | — | ASTM D150 at 10.0 kHz |
| Volume resistivity | 2.14 × 1015 | Ω·cm | Electrical property testing per ASTM D149/D150 |
| Surface resistivity | 3.17 × 1014 | Ω | Electrical property testing per ASTM D149/D150 |
| Thermal conductivity | 5.01 × 10-4 | cal/(s·cm·°C) | Cured bulk resin property |
| Coefficient of thermal expansion, α | 70.7 | µm/m·°C | Measured at 40°C |
| Coefficient of thermal expansion, α | 108.0 | µm/m·°C | Measured at 100°C |
| Hardness | 80 | Shore D | Measured at 77°F/25°C |
Lap-shear and peel specimens used 2024-T3 bare aluminum adherends phosphoric-acid anodized in accordance with ASTM D3933.
